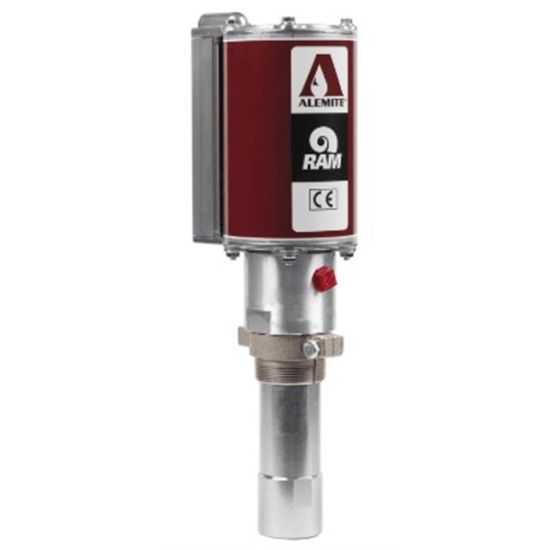

Alemite 5:1 Ram Stub Pump Part# - 9968

Alemite 5:1 Ram Stub Pump Part# - 9968

Brand: ALEMITE

Part Number: 9968

Weight: 17.82 lbs

Country of Origin: UNITED STATES

Minimum Order Qty: 1 EA

Features: Pump for delivering fluids up to SAE 140 through pipes of short to moderate length | Suitable for use with Alemite downtube and drum or tank (each sold separately) | Delivery rate of 7 gal. per minute, with 5:1 pump ratio | Aluminum air motor for light weight and corrosion resistance | Weighs 14 lb.

The Alemite 9968 medium-pressure PML (pneumatic motor logic) fluid dispensing pump includes a bung adapter and is suitable for use with an Alemite downtube and a drum or tank (each sold separately) for delivering fluids up to SAE 140 through pipes of short to moderate length. The pump has a delivery rate of 7 gallons per minute, with a pump ratio of 5:1. The air motor has a 1/4" air inlet and is made of aluminum for light weight and resistance to corrosion. Double toggles provide even pressure without stalling the motor. Pneumatically actuated pilot valves in the motor cause the spool valve to shift for controlling airflow. The 1-1/2" female material inlet and 1/2" female material outlet have NPTF (National Pipe Taper Fuel) threading to prevent leaks. The pump weighs 14 lb. The air motor measures 3" in diameter. This stationary pump is suitable for use with an Alemite 338246-1, 338246-2, 338246-3, 338246-6, 338147-1, 338147-2, 338147-3, or 338147-7 downtube (each sold separately).Alemite manufactures lubrication and fluid handling systems and components. The company, founded in 1918, is headquartered in Fort Mill, SC. What's in the Box? 9968 medium-pressure PML fluid dispensing pump 326750-B1 bung adapter
