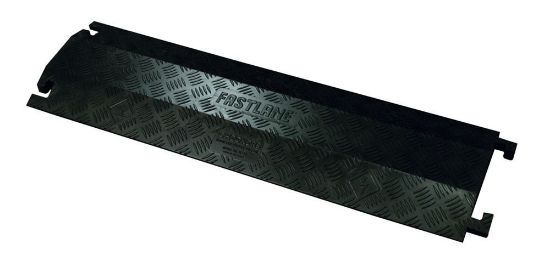

Checkers Cable Protectorfastlane1-Ch1L-Connblack Part# - Fl1X4-B
Brand: CHECKERS
Part Number: FL1X4-B
Weight: 10 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: Large size protects cables and cords up to 1" in diameter | All weather polyurethane construction for moderate load capacity; Patented 5-bar tread surface provides maximum traction | Heavy duty L-shaped connector interlocks modular sections; Increase traction with optional Velcro strips for carpet and/or anti-slip rubber pads for smooth surfaces | Lightweight, modular design for easy setup, disassembly, and storage; Safety warning symbols molded into protector surface | Connect alternating colors to enhance visual warning
The Fastlane FL1X4-B polyurethane 1 channel drop over cable protector is made from reaction injection molded (RIM), UV-stabilized polyurethane to protect cables, electrical cords, and hoses with an outside diameter of up to 1"/25.4 mm from wear and compression caused by vehicular traffic (up to 2,100 lb./10,614 kg per axle) while helping to reduce the danger posed by loose cables in the path of pedestrians. Its drop over design with single 4"/101.6 mm wide channel is easy to deploy and remove, and provides a low profile at 1.5"/38.1 mm high to reduce the risk of tripping accidents. The cable protector has two L-shaped connectors on each side (two male connectors on one side and two female connectors on the other) for interlocking multiple connectors to extend coverage across wide passages. This cable protector is manufactured using a process called Reaction Injection Molding (RIM), which results in a consistency beneficial when connecting multiple protectors. The polyurethane used is nonconductive and resistant to damage from abrasion, oils, and solvents. The surface has a patented five-bar tread pattern for traction, and molded safety symbols that meet American National Standards Institute (ANSI) Z535.3-1991 standards. This cable protector is suitable for lightweight vehicle and pedestrian traffic at homes, offices, warehouses, as well as indoor and outdoor commercial and industrial environments. When used according to manufacturers recommendations, this product is covered by a one-year warranty against defects in workmanship or materials. Specifications Cable capacity 1 channel Cable channel dimensions 1 x 4 inches/25.4 x 101.6 mm (H x W) Maximum load capacity at 70 degrees F (21 degrees C) 1,050 lb./477 kg per tire 2,100 lb./10,614 kg per axle Overall dimensions 1.5 x 10.75 x 36 inches/38.1 x 273x 914.4 mm (H x W x D) Weight 8 lb./3.6 kg Operating temperature -40 degrees F to 120 degrees F (-40 degrees C to 48 degrees C) Color Black H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Drop over cable protectors (also called cable covers or cord covers) protect cables, electrical cords, and hoses from wear and compression from pedestrian and vehicular traffic. They can also improve pedestrian safety by helping to decrease the risk of tripping over cables crossing paths or aisles. Drop over cable protectors are placed over cables lying on a floor or outdoor surface where people or cars are expected to pass. These protectors are shaped like trapezoids with an opening on the bottom (called the channel) for the cable or cord. Because they are open on the bottom, they are easy to deploy and pick up, but when used on rough surfaces, they do not protect cables from abrasion from below. Cable protectors are designed for use in public, commercial, and industrial applications where cables, cords, and hoses need to extend across an area pedestrians may pass or vehicles might drive over. Checkers Industrial Safety Products manufactures and distributes a variety of products including cable management systems, wheel chocks, and warning whips for manufacturing, mining, aviation, military, construction, and entertainment applications. The company, founded in 1987, is headquartered in Broomfield, CO.
