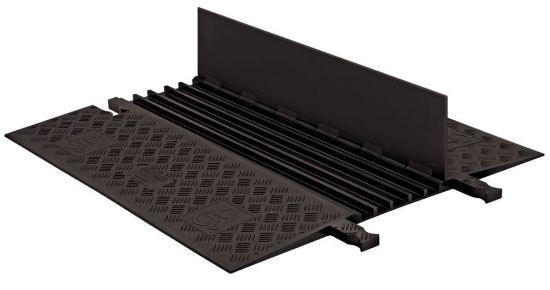

Checkers Cbl Protguard Dog5-Ch.75"Low Profileadadog Part# - Gd5X75-B/B

1 EA
Manufacturer: Checkers
-

In-Stock

$385.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Checkers Cbl Protguard Dog5-Ch.75"Low Profileadadog Part# - Gd5X75-B/B

Brand: CHECKERS

Part Number: GD5X75-B/B

Weight: 31 lbs

Country of Origin: UNITED STATES

Minimum Order Qty: 1 EA

Features: Hinged lid for easy cable placement; polyurethane construction | High load-bearing capacity; satisfies state and federal regulatory agencies | 5-Bar tread plate surface for maximum traction | Safety warning symbols molded into lid; ADA compliant symbols molded into ramps | Modular interlocking design is easy to setup, breakdown and store; universal safety colors for high visibility

Heavy duty guard dog low profile cable protectors are ideal for stage, studio, and broadcast applications. They provide a safe and easy crossing for vehicle and pedestrian traffic and are perfect for valuable electrical and delicate multi-media electronic cables. These low profile protectors with dog-bone connectors feature low angle ada compliant black ramps with black lid. Single channel allows cable/hose lines to be placed in their own protective channel while the low angle ramps allow effortless crossing. Weight 24.5 lbs. Material: polyurethane (UV stabilized). Operating temperature: -40 degree F to 120 degree F (-40 degree C to 48 degree C). Hinge pin material: reinforced fiberglass. Safety symbols: per ANSI. Z535.3-1991. Load capacity 1 channels: max load at 70 degree F (21 degree C). Load capacity per tire: 34,000 lbs. (15,422 Kg). Load capacity per axle: 68,000 lbs. (30,844 Kg). 1.3" Channel width by 0.75" channel height. Measures 36" length by 33.3" width by 1.25" height.
