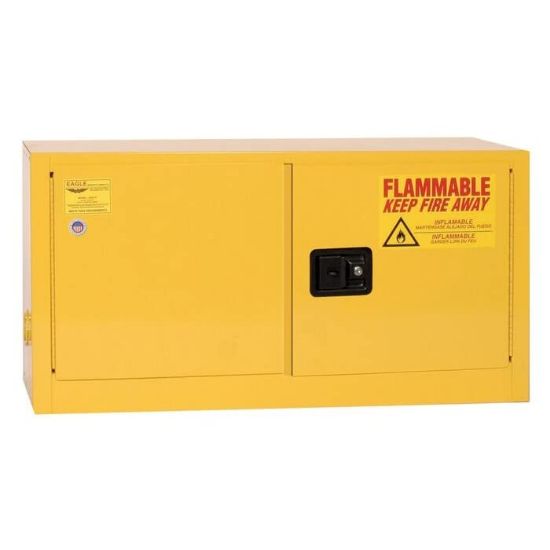

Eagle 15 Gal. Add-On Flammableliquid Safety Cabinet Part# - Add14X
Brand: EAGLE
Part Number: ADD14X
Weight: 145 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: 0
Description: 15 Gallon, self-closing, Add On Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements. Product Summary: Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors Constructed of 18-gauge steel Lead-free, high-gloss, baked-on powder finish Continuous piano hinges Ground connection Four adjustable galvanized leveling legs Trilingual warning labels 2 in (5.1 cm) raised leakproof sill Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL) Internal and external welded construction Two 2 in (5.1 cm) internal vents with fire baffle and cap Flush mounted door handle with key lock Three-point stainless steel bullet latching system 3 in (7.6 cm) centers for shelf brackets Self-latching doors Door closings: Self-Closing (135° opening) Concealed self-close mechanism provides obstruction-free access to top shelf space Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Specifications More Information Model No ADD14X Color Yellow Material Specifications 18-Gauge Steel FM Approval Yes OSHA Compliance Yes Complies with NFPA Code 30 Yes Door Style Self-close UPC 048441690350 Dimensions, Exterior 43W x 18Dx 24H Dimensions, Interior 39.5" W x 14.56" D x 19.5" H (100.3 x 37 x 49.5 cm) Number of Doors 2 Number of Shelves 1 Uniform Fire Code Yes Lock Yes Gallon Capacity 15 Liter Capacity 56.78 Replacement Shelf Model No. 29937 Pallet Quantity 1 Shelf Depth 14" (35.6 cm) Net Weight, lbs 126 Net Weight, kgs 57.15 Adjustable Shelf Yes
