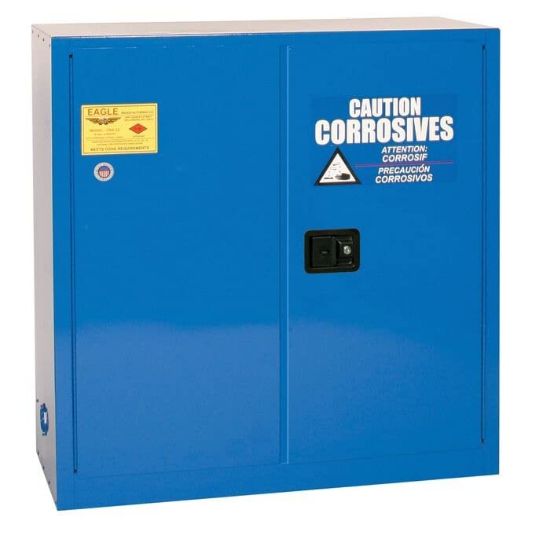

Eagle 30 Ga 2 Dr Self-Cl Cab Acid/Corrosvises Blue Part# - Cra3010X
Brand: EAGLE
Part Number: CRA3010X
Weight: 244 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: 0
Description: Eagle 30 Gallon, self-closing, Acid Corrosive Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with Sulfuric, Nitric or Hydrochloric acids. Cabinets are FM-approved and meet NFPA Code 30 and OSHA requirements. Product Summary: Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors Constructed of 18-gauge steel Lead-free, high-gloss, baked-on powder finish Continuous piano hinges Ground connection Four adjustable galvanized leveling legs Trilingual warning labels 2 in (5.1 cm) raised leakproof sill Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL) Internal and external welded construction Two 2 in (5.1 cm) internal vents with fire baffle and cap Flush mounted door handle with key lock Three-point stainless steel bullet latching system 3 in (7.6 cm) centers for shelf brackets Self-latching doors Door closings: Self-Closing (135° opening) Concealed self-close mechanism provides obstruction-free access to top shelf space Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Specifications More Information Model No CRA3010X Color Blue Material Specifications 18-Gauge Steel FM Approval Yes OSHA Compliance Yes Complies with NFPA Code 30 Yes Door Style Self-close UPC 048441690992 Dimensions, Exterior 43W x 18Dx 44H Dimensions, Interior 39.5" W x 14.6" D x 39.5" H (100.3 x 37 x 100.3 cm) Number of Doors 2 Number of Shelves 1 Uniform Fire Code Yes Lock Yes Gallon Capacity 30 Liter Capacity 113.56 Replacement Shelf Model No. 29937 Pallet Quantity 1 Shelf Depth 14" (35.6 cm) Net Weight, lbs 201 Net Weight, kgs 91.17 Adjustable Shelf Yes
