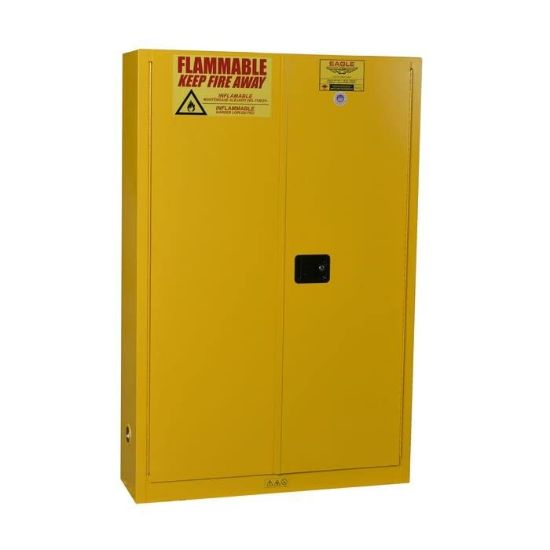

Eagle 30 Gal 2 Door Self Closing Cabinet Part# - Ypi7710X
Brand: EAGLE
Part Number: YPI7710X
Weight: lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: 0
Description: Eagle 30 Gallon, self-closing, Aerosol Can Storage Paint and Ink Safety Cabinets come with extra shelves to maximize storage space. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes wall-mounting brackets to prevent cabinet from tipping. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements. Product Summary: Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors Constructed of 18-gauge steel Lead-free, high-gloss, baked-on powder finish Continuous piano hinges Ground connection Four adjustable galvanized leveling legs Trilingual warning labels 2 in (5.1 cm) raised leakproof sill Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL) Internal and external welded construction Two 2 in (5.1 cm) internal vents with fire baffle and cap Flush mounted door handle with key lock Three-point stainless steel bullet latching system 3 in (7.6 cm) centers for shelf brackets Self-latching doors Door closings: Self-Closing (135° opening) Concealed self-close mechanism provides obstruction-free access to top shelf space Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Specifications More Information Model No YPI7710X Color Yellow Material Specifications 18-Gauge Steel Door Style Self-close UPC 048441692545 Dimensions, Exterior 43W x 12Dx 65H Dimensions, Interior 39.5" W x 8.56" D x 60.5" H (100.3 x 21.7 x 153.7 cm) Number of Doors 2 Number of Shelves 5 Lock Yes Gallon Capacity 30 Liter Capacity 113.56 Replacement Shelf Model No. 29938 Pallet Quantity 1 Shelf Depth 8.6" (21.9 cm) Net Weight, lbs 288 Net Weight, kgs 130.63 Adjustable Shelf Yes
