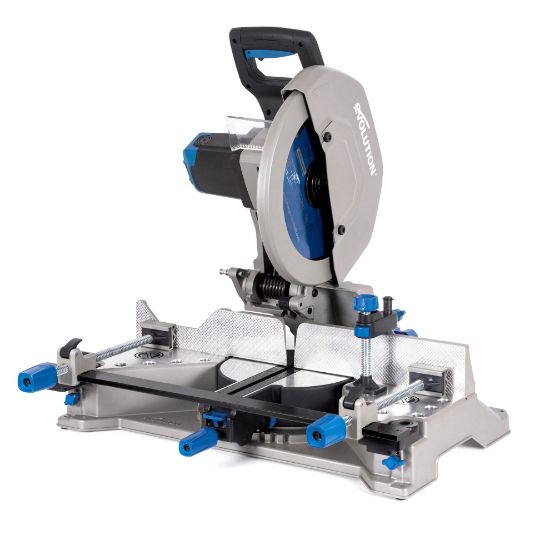

Evolution S355Mcs 14 In. Miteringchop Saw Part# - 102-0004
Brand: EVOLUTION
Part Number: 102-0004
Weight: 88 lbs
Country of Origin: PEOPLE'S REPUBLIC OF CHINA
Minimum Order Qty: 1 EA
Features: 14" Mitering Chop Saw | Powerful 15A / 1450 rpm | Mitering Base & Blade | Quick-Release Clamps | Dual-sliding Cast Iron Clamps | Top Clamp | Sliding Head with Locking Pin | Knurled Fence
About this item
Built for professionals, the S355MCS Mitering Chop Saw from Evolution is the first 14” TCT industrial Chop Saw that allows you to produce accurate miter cuts without having to reposition the workpiece.
Designed to tackle heavy cuts in oversized metal pieces, the S355MCS Mitering Chop Saw features a precision adjustable miter table, 3-position saw head, and our unique, height adjustable front clamp rail assembly. It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time.
With a powerful 15A motor, easy ambidextrous controls, and a Bench Dog compatible base plate with a tough knurled back fence, the S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs.
Specifications Machine Spec Motor (120V 60Hz): 15A Speed No Load: 1450 rpm Max. Bevel (Left): +/- 46° Cable Length: 10 ft Blade Spec Blade Dia.: 14 In. No. of Teeth: 66 Bore: 1 In. Kerf: .094 In. Cutting Capacities Mild Steel Plate (Max Thickness): 1/2 In. Stainless Steel Plate (Max Thickness): 13/64 In. Square Tube at 90° (Mild Steel): 4-3/4 x 4-3/4 In. Square Tube at 45° ML: 4 x 4 In. Square Tube at 45° MR: 1-3/4 x 1-3/4 In. Rectangle Tube at 90° 6-1/2 x 4 In. Rectangle Tube at 45° 4-1/2 x 1-3/4 In. Round Tube at 90° Ø 4-3/4 In. Round Tube at 45° (Mild Steel): Ø 4 In. Minimum Cut Off Piece Length: 5/16 In. Dimensions Packaging Dimensions: 18 x 30 x 23 In. Product Dimensions (assembled): 28.25"L x 26"W x 27.5"H Product Weight: 77 lbs Packaged Weight: 88 lbs Items Included Instruction Manual 66 Tooth Mild Steel TCT Blade Double Ended 5mm/8mm Hex Key Cutting Head Assembly Base Table Assembly Rear Stabilising Leg QR Top Clamp Rail Bracket & Fixings V-Blocks x3 QR Front Clamps x 2
