Greenlee® 30385 Slug-Splitter Knoc Part# - 7506
Brand: GREENLEE®
Part Number: 7506
Weight: 32 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: package dimensions :45.212 cm L x 27.177 cm W x 12.446 cm H | Product type :TOOLS | country of origin:United States | Package weight :3.33lbs | Workpiece Material Stainless Steel, For Use With Hand, Foot and Hydraulic Pumps

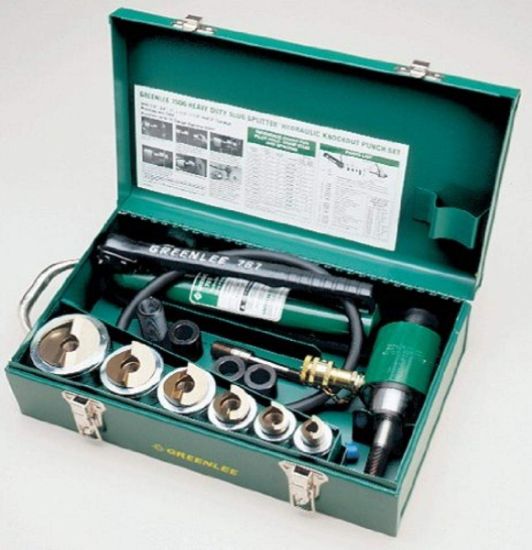

Amazon.comview largerview larger Greenlee 7506 Ram and Hand Pump KitDesigned for punching holes in stainless steel, the Greenlee 7506 ram and hand pump kit combines bestselling Slug Splitter SC knockouts with the 11-ton power of the 767 hand pump and 746 ram, providing you with a powerful, compact knockout solution.This kit comes with premium self-centering Slug Splitter SC knockouts. Designed to withstand punching through up to 10-gauge steel, as well as through a variety of other materials, Slug Splitter SC knockouts are long-life, abrasion-resistant, and even split the slug in two for easy removal from the die, saving you time when punching holes.Self-centering Slug Splitters are designed to save you even more time when punching holes in stainless steel. The unique design saves time by automatically centering the punch to the pilot hole, removing the need to mark crosshairs. For use with U.S. standard-size conduit*, as well as a variety of other applications, the 7506 ram and hand pump kit is a small, powerful choice for any professional electrician who needs to get the job done faster, safer, and easier than ever before.The Greenlee 7506 ram and hand pump kit comes with six Slug Splitter SC knockouts, six dies, three spacers, two drawstuds, a 3-foot-long high-pressure hose, and a sturdy, compact metal case for easy transport and storage.* Hole size is outside diameter of standard U.S. conduit sizes. Example: 1/2" Slug Splitter SC produces a 7/8" (22.5mm) Ø hole. Maximum Steel Capacities for Conduit Sizes Slug Splitter SC Size Chart Required Drawstud 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 7/16" Drawstud (29451) ✓ 3/4" Drawstud (29452) ✓ ✓ ✓ ✓ ✓✓ Up to 10-gauge stainless steel The 29452 3/4" drawstud with spacer, 2" die, and 2" Slug Splitter SC. view larger Slug Splitter SC KnockoutsSlug Splitter SC punches feature a unique design in which the chamfer self centers on pilot hole for perfect alignment every time. Just tighten down the punch on your draw stud and let the new punch center itself on the pilot hole. No more time wasted trying to line up the die alignment marks or drawing crosshairs to ensure alignment. Slug Splitter SCThe Slug Splitter's unique design creates a slug as the punch is drawn into the die,Slug is split in half as punching operation is completed.Split slug easily falls free from the die. The 29452 3/4" drawstud with spacer, 2" die, and 2" Slug Splitter SC. view larger Included Components Model Number Description Conduit and Pipe Size Ø Size of Hole Inches Ø Size of Hole mm Ø Size of Hole PG Capacity Stainless Steel GA Capacity Stainless Steel mm 28154 1/2" Conduit Size Slug Splitter SC Punch 1/2" 0.885 22.5 16 10 3.5 28155 1/2" Conduit Size Die 1/2" 0.885 22.5 16 10 3.5 28156 3/4" Conduit Size Slug Splitter SC Punch 3/4" 1.115 28.3 21 10 3.5 28157 3/4" Conduit Size Die 3/4" 1.115 28.3 21 10 3.5 28158 1" Conduit Size Slug Splitter SC Punch 1" 1.362 34.6 - 10 3.5 28159 1" Conduit Size Die 1" 1.362 34.6 - 10 3.5 28160 1-1/4" Conduit Size Slug Splitter SC Punch 1-1/4" 1.701 43.2 - 10 3.5 28161 1-1/4" Conduit Size Die 1-1/4" 1.701 43.2 - 10 3.5 28162 1-1/2" Conduit Size Slug Splitter SC Punch 1-1/2" 1.951 49.6 - 10 3.5 28163 1-1/2" Conduit Size Die 1-1/2" 1.951 49.6 - 10 3.5 28165 2" Conduit Size Slug Splitter SC Punch 2" 2.416 61.5 - 10 3.5 28166 2" Conduit Size Die 2" 2.416 61.5 - 10 3.5view larger Model Number Description 767 Hydraulic Hand Pump 746SS Hydraulic Ram 06302 High Pressure Hose Unit 1/4" x 3' 29451 7/16" x 4-1/4" Drawstud 29452 3/4" x 5-1/2" Drawstud 1924AA Short Spacer 1925AA Medium Spacer 1926AA Long Spacer 54169 1/4" Male Coupler 54167 1/4" Female Coupler 54170 Dust Cap 54168 Dust Plug 31068 Metal Caseview larger About GreenleeFounded in 1862, Greenlee is a leader when it comes to developing innovative tools for the professional tradesperson. From barrel-making beginnings to the present day selection of wire/cable installation tools, electronic testing and measurement instruments a
