Greenlee® 7906Sb - Quick Draw 90 Sb 1/2" - 2" Part# - 7906Sb
Brand: GREENLEE®
Part Number: 7906SB
Weight: 19.5 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA (1 ST = 1 EA)

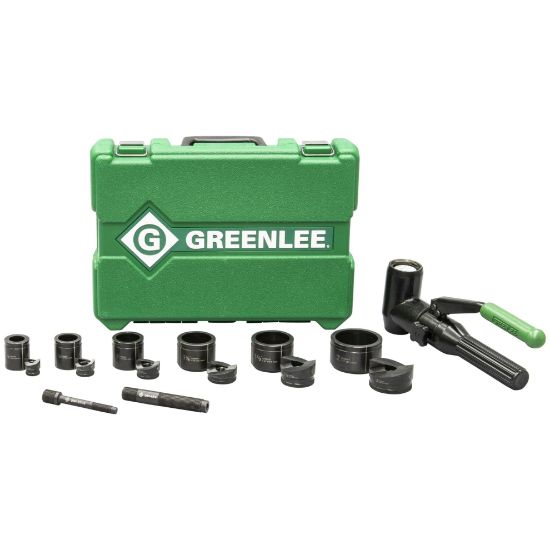

Features: 1/2" - 2" HYDRAULIC KNOCKOUT KIT: Features a new die design optimized for the widest range of materials to punch precise holes in up to 10-gauge mild steel, 12-gauge stainless steel, aluminum, brass, copper, fiberglass, and plastics | ERGONOMIC DESIGN: Compact, lightweight design offers portability and quick, easy 1-person operation, and knurled edge on punches provides a better grip | EASY THREADING AND REMOVAL: Eliminates cross-threading by drawing studs with the dog point tip, and hex key access allows for stud easy removal from the tool | GREAT FOR TIGHT SPACES: For easy maneuverability in tight work spaces, the right angle hydraulic punch driver head rotates over 180 degrees | CARRYING CASE: Includes a Quick Draw 90 knockout driver, 1/2" to 2" conduit size Slug-Buster punches, 1/2" to 2" conduit size dies, 7/16" and 3/4" short hydraulic draw studs, and a KCC-QD2 case with markings for easy part identification
Amazon.comQuick Draw 90 with drawstuds and spacer. Greenlee 7906SB Quick Draw 90 Hydraulic Punch Driver and Kit with Conduit-Sized PunchesDesigned for the serious contractor or electrician, as well as the do-it-yourself handyman, the Quick Draw 90 kit comes complete with drawstuds, dies, and U.S.-standard conduit-sized Slug-Buster knockouts* to meet the demands of the job site. With a 90-degree punching angle and a compact, lightweight design, the Quick-Draw 90 kit is brilliant for any electrician who needs to simply, easily, and consistently punch holes at 90-degree angles.Favored by electrical experts, the Greenlee Quick Draw system is a self-contained hydraulic knockout punch for use with aluminum, plastic, fiberglass, and up to 10-gauge steel. When used with Greenlee's Slug-Buster knockouts, the Quick Draw range helps you knock out holes faster and easier than ever before. Available separately, the Slug-Splitter SC knockouts will even punch through up to 10-gauge stainless steel.The standard Quick Draw is a straight knockout, the Quick Draw 90 knocks out holes at 90-degree angles, and with its flexible head, the Quick Draw Flex can help you reach those awkward spots with ease.All Quick Draw punches develop eight tons of hydraulic force for easy hole punching and Slug-Buster knockouts split the metal slug for easy removal from the die. With their compact, lightweight design, Greenlee Quick Draw punches provide a brilliant alternative to ratchet-based knockout designs.* Hole size is outside diameter of standard U.S. conduit sizes. Example: 1/2-inch (12.7mm) Slug Buster produces a 7/8-inch (22.5mm) Ø hole. The Slug Buster's unique design creates a slug as the punch is drawn into the die. Slug is split in half as punching operation is completed. Split slug easily falls free from the die. Maximum Steel Capacities for Conduit Sizes Slug Buster splits the slug in two for easy removal from the die. Slug Buster Size Chart Required Drawstud & Accessories 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2" 3/8" Drawstud • Spacer & 3/4" Drawstud • • • • 3/4" Drawstud • •• Up to 10-gauge mild steel. Not for use with 10-gauge stainless steel. Use Slug Splitter SC range instead (sold separately).Included Components Model Description Conduit and Pipe Size (Inches) Ø Size of Hole (Inches) Ø Size of Hole (mm) Ø Size of Hole (PG) 721-1/2 1/2" Conduit Size Slug Buster Punch 1/2 0.885 22.5 16 14722 1/2" Conduit Size Die 1/2 0.885 22.5 16 721-3/4 3/4" Conduit Size Slug Buster Punch 3/4 1.115 28.3 21 124AV 3/4" Conduit Size Die 3/4 1.115 28.3 21 721-1 1" Conduit Size Slug Buster Punch 1 1.362 34.6 - 126AV 1" Conduit Size Die 1 1.362 34.6 - 721-1-1/4 1-1/4" Conduit Size Slug Buster Punch 1-1/4 1.701 43.2 - 128AV 1-1/4" Conduit Size Die 1-1/4 1.701 43.2 - 721-1-1/2 1-1/2" Conduit Size Slug Buster Punch 1-1/2 1.951 49.6 - 440AV 1-1/2" Conduit Size Die 1-1/2 1.951 49.6 - 721-2 2" Conduit Size Slug Buster Punch 2 2.416 61.5 - 442AV 2" Conduit Size Die 2 2.416 61.5 -The 1924AA spacer, the 34983 plastic case, and the Quick Draw 90 are also included in the Quick Draw 90 kit. Additional and replacement knockouts and dies sold separately. About GreenleeFounded in 1862, Greenlee is a leader when it comes to developing innovative tools for electrical contractors. From barrel-making machines to woodworking equipment, to the present day selection of wire/cable installation tools, electronic testing and measurement instruments, and other solutions, Greenlee continues to be a respected and trusted source for the electrical professional. Whatever your tooling need, you can always rely on Greenlee to make your job faster, safer, and easier every day.Product DescriptionMaster your jobs with speed and accuracy with the Greenlee 7906SB Quick Draw 90 Hydraulic Knockout Kit (catalog number 7906SB). Designed for electrical experts, this hole-making kit features a new die design optimized for the widest range of materials to punch precise holes in up to 10-gauge mild s
