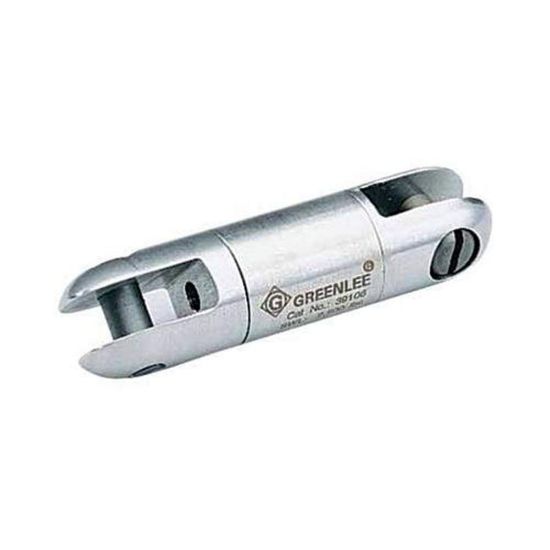

Greenlee® Swivel-10 000 Lbs Part# - 39109
Brand: GREENLEE®
Part Number: 39109
Weight: 2.165 lbs
Country of Origin: CANADA
Minimum Order Qty: 1 EA
Features: Helps eliminate winding and tangling of rope and cable during pull. | Connects grip and pulling rope. | All stainless steel body construction. | Select the connector wtih a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force. | Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread.
Greenlee 39109 Specifications:Maximum Rated Capacity: 10,000 lbs. (44.4 kN)Overall Length: 5-7/16" (138.1 mm)Weight: 2.0 lbs. (.91 kgv)Replacement Pin Kit: 39115Greenlee 39109 Features:Helps eliminate winding and tangling of rope and cable during pull. Connects grip and pulling rope. All stainless steel body construction. Select the connector wtih a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force.Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread.Select the swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force.
