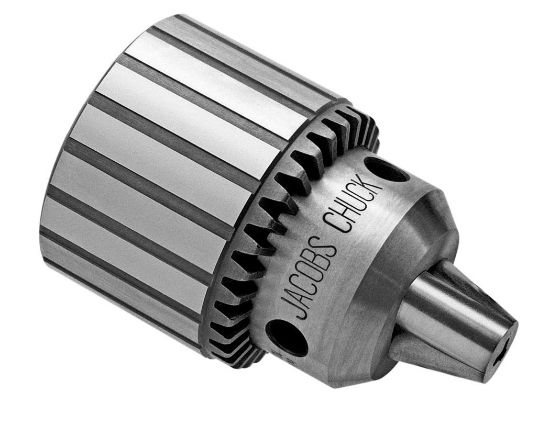

Jacobs Chuck® 41Ba 3/8 C&K K30 Key Part# - Jcm32282
Brand: JACOBS CHUCK®
Part Number: JCM32282
Weight: 0.58 lbs
Country of Origin: PEOPLE'S REPUBLIC OF CHINA
Minimum Order Qty: 1 EA
Features: Jaws center ground for absolute straightness and alignment | One piece sleeve eliminates crack between driving teeth often found in other designs | Through hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance | Each chuck 100 percent inspected for performance and precision | TIR 0.004-inch maximum at half capacity
Jacobs Chuck medium duty thread mounted chuck. Jaws center ground for absolute straightness and alignment. One piece sleeve eliminates crack between driving teeth often found in other designs. Through hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance. Each chuck 100 percent inspected for performance and precision. TIR 0.004-inch maximum at half capacity. Models 0 and 1A are smooth sleeve. All Model 33 plain bearing chucks are hammer capable. This is 3/8-24 mount. 0.375-inches maximum and 0.040-inches minimum capacity. Measures 1-7/16-inches sleeve diameter by 2-1/2-inches closed length and 2.05-inches open length.
