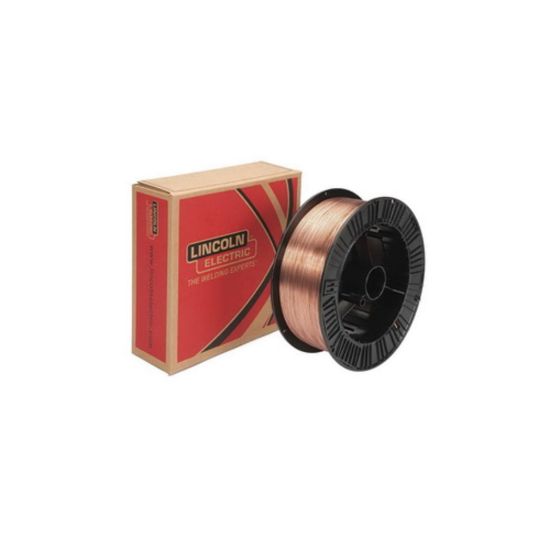

Lincoln Electric .045 Superarc La-90 33#Steel Spool Part# - Lined031414
Brand: LINCOLN ELECTRIC
Part Number: LINED031414
Weight: 1 lbs
Country of Origin: CANADA
Minimum Order Qty: 1 SO (33 LB = 1 SO)
Features: 0
Lincoln Electric ED031414 SuperArc LA-90 MIG Wire; ER80S-D2/ER90S-D2, 0.045 Inch, 33 lb. Steel Spool, Low Alloy Steel, Copper Coated Lincoln Electric SuperArc LA-90 MIG Wire; Diameter: 0.045 Inch; Container Size: 33 lb.; Container Type: Steel Spool; AWS Classification: ER80S-D2, ER90S-D2; Material: Low Alloy Steel, Copper Coated; Tensile Strength: 550 Mpa Minimum At ER80S-D2, 620 Mpa Minimum At ER90S-D2; Welding Position: All Position SuperArc LA-90 is our premium copper coated, low alloy MIG wire manufactured to meet tensile strength requirements of 80, 000 to 90, 000 psi (552-620 MPa) minimum. The addition of 0.5% molybdenum provides strength after stress relief. Ideal selection when welding ASTM A182, A217, A234 and A335 high temperature pipe, fittings, flanges and valves and A336 pressure vessel forgings. Best mechanical properties are achieved with an 98-95% argon, 2-5% oxygen shielding gas blend. Capable of producing weld deposits with 550 - 620 MPa (80 - 90 ksi) tensile strength Contains 0.50% molybdenum for strength after stress-relief MicroGuard Ultra provides superior feeding and arc stability Supports short-circuiting, globular, axial spray and pulsed spray transfer Consistent weld deposit chemistry and procedures from package to package improve quality and save time Fluid puddle, good wash in at weld toes and flat weld beads minimize defects, scrap or rework Low feed forces reduce wear and tear on gun liners and contact tips Excellent operator appeal no gun chatter or feeding instability Quiet, very stable arc produces less spatter, reduces clean up time and raises productivity Specifications: AWS / -2005 and ASME SFA- -ER80S-D2 (100% CO2) and ER90S-D2 (Mixed), aws / -2007 EA3K, CWB/CSA W48-06-ER55S-D2 (ER80S-D2), ER62S-D2 (ER90S-D2), MIL-E-23765/2-MIL-80S-3 Industrial Application: Requirements for Strength after Stress Relieving, ASTM A182, A217, A234 and A335 High Temperature Service Pipe, Fittings, Flanges and Valves, ASTM A336 Pressure Vessel
