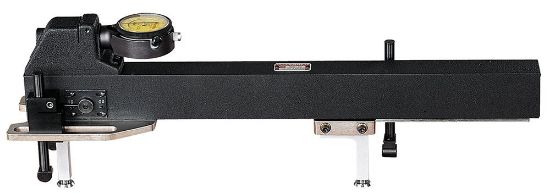

L.S. Starrett 1100-18 12-18" H.D. Dial Part# - 53128
Brand: L.S. STARRETT
Part Number: 53128
Weight: 11.25 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: The sensitive contact transfers dimensions to the dial indicator through a linear friction-free mechanism | There are two gage feet at the reference end and one foot at the sensitive end of the gage to set the gage on the work and align the contacts | Gage depth is set by adjusting the gage feet up or down | A lever-actuated reverse mechanism loads the gage for either inside or outside diameter measurements | The gage contacts are easily changed to I.D. or O.D. gaging by turning them end for end
Dial Indicator Diameter Gages measure both outside and inside diameters by comparing dimensions to gage blocks or an adjustable setting master. Each gage consists of a strong rectangular box beam with a sensitive gaging contact at one end and a reference gaging contact at the other. The 1100 gages combine heavy-duty construction features with adaptability for a wide range of internal and external measurements. The adjustable dowel rest legs ride on slotted mounting plates for horizontal adjustment. Each of the legs are vertically adjustable to obtain the proper rest position on the work and correct alignment on the gaging contacts. 2-Inch or 50 mm range vertical adjustment. Radiused gaging contacts. The indicator can be rotated through to 360-Degree for a convenient viewing angle. The gage should be checked against our 1126 Master for a precise reference standard during production gaging.
