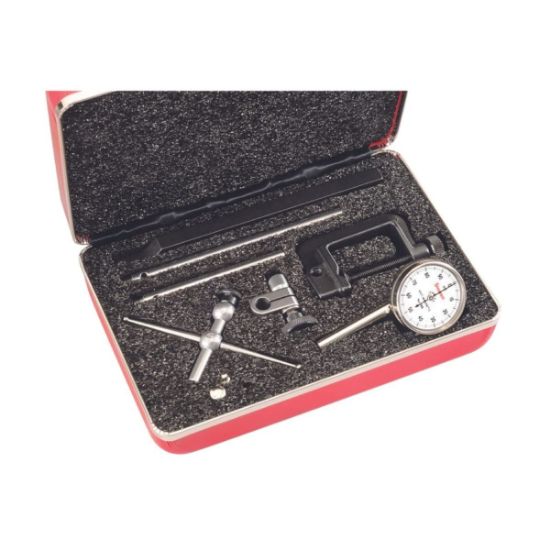

L.S. Starrett 196A6Z Dial Indicator An Part# - 50701
Brand: L.S. STARRETT
Part Number: 50701
Weight: 2.19 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA
Features: Perfect For Any Job - Whether you're measuring height, depth, or width, this indicator will get the job done quickly and easily. With its durable construction and versatile design, it's ready for any task. | Easy to Use - Our Dial Indicator features an easy-to-read dial face with a pointer that moves over the scale to indicate load measurement. It also has a wide range of accessories available for use with this indicator. | Rugged Construction - This is the most rugged and durable dial indicator on the market. With its hardened steel contact points and heavy-duty construction, this indicator will provide years of reliable service. | Accuracy You Can Count On - Starrett precision measuring tools exceed accuracy and performance requirements of national and international standards, providing excellent fine precision tools for industrial, professional and consumer markets worldwide. | The Standard for Excellence - Manufacturing quality tools that provide consistent and reliable performance since 1880, Starrett's commitment has earned them a reputation as one of the most trusted names in the industry.
The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. Its dial reading is 0-100 with 3 contact points and 4 attachments in a case. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. It is frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. These dial test indicators are like dial indicators, except that the measurement axis is perpendicular to the axis of the indicator. These dial and dial test indicators can be analog with a mechanical dial, or electronic with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation. The L.S. Starrett Company manufactures precision measuring tools, metrology, testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
