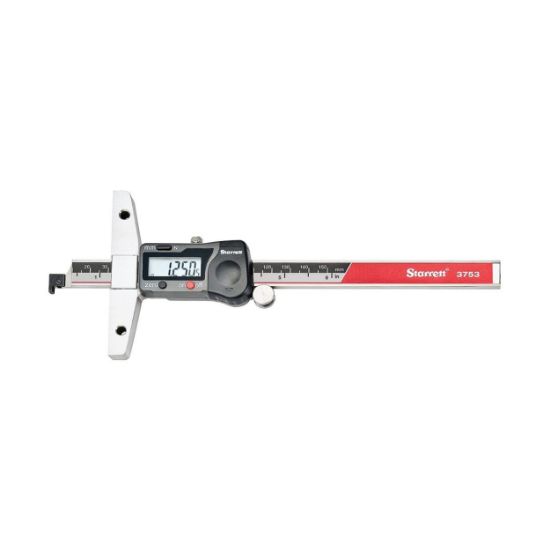

L.S. Starrett Electronic Depth Gages Without Output 0-6" Range Part# - 12258
Brand: L.S. STARRETT
Part Number: 12258
Weight: lbs
Country of Origin: PEOPLE'S REPUBLIC OF CHINA
Minimum Order Qty: 1 EA
Features: Clear, easily-read numbers, properly sized for the tool | Hardened stainless steel body and slide for long life | Fine adjustment thumb roll for precision measurements | Lock to hold the slide in position | Hardened base is 3-15/16-inch (99mm) long, but optional base extensions of 7-inch and 12-inch (175 and 300mm) are available.
The Starrett 3753 Electronic Depth Gauge without Output, has a measurement range of 0 to 8" (0 to 200mm), and a resolution (or smallest graduation interval) of 0.0005" (0.01mm) with + or - 0.001" (0.03mm) of accuracy. The LCD screen displays in both inches and metric. The base is 2.75"(70mm) long, and the body and the slide are made of hardened stainless steel for durability. Control buttons offer Zero at any position, Hold at any position, and Limits functions. These gauges include one CR2032 lithium battery. Larger bases and additional batteries are sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
