L.S. Starrett S828Hz Center Finder Com Part# - 53064
Brand: L.S. STARRETT
Part Number: 53064
Weight: 0.26 lbs
Country of Origin: UNITED STATES
Minimum Order Qty: 1 EA

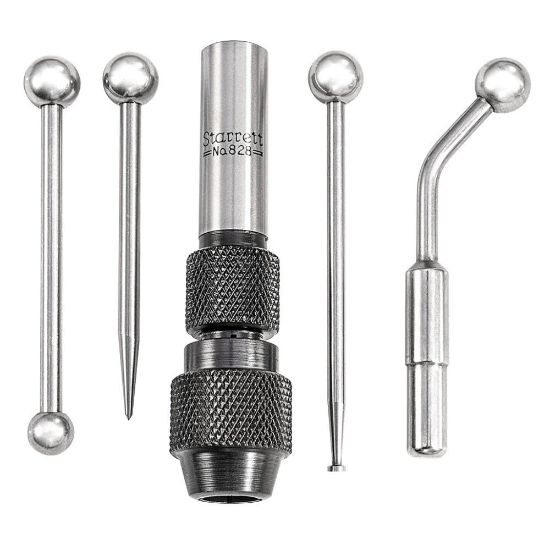

Features: Power Tool and Attachments - Wiggler/Center Finder S828 and four different attachments adapt to countless applications and are readily interchangeable. It is an essential tool for any machine shop. | Concentricity Made Easy - The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint that permits adjustment to an angular position or true concentricity. | Index Your Work - The Ball Contact 828B is useful in locating work by first bringing the contact (ball diameter .250" or 6.35mm) against the work, a slot, hole, shoulder, or end, and indexing the work to the desired position relative to the spindle. | Get The Job Done Right - The Disc Contact 828C, which has a small disc at the end (.100"/2.54mm) diameter, permits use in more confined areas such as slots or shallow holes. | Best Performance - The Offset Indicator Holder 828D can be used with Last Word Test Indicators, the user can sweep holes or O.D.s for checking run-out or concentricity, establish center distances, check straightness or alignment of flat surfaces.
Product DescriptionThe Starrett Wiggler/Center Finder S828 and four different attachments adapt to countless applications and are readily interchangeable. The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint which permits adjustment to an angular position or true concentricity. Center Finder complete with Nos. 828A/B/C/D, in Case concentricity. Edge & Center Finders are used in the traditional method of locating a spindle relative to a work piece. Spindle location is required in order to correctly make part features. These features, like bolt hole locations for example, are often established relative to the edge a work piece. Once the edges of a part are established in the spindle, the location of the spindle can then be utilized. These tools validate when a spindle is precisely over the edge of a part. Starrett Precision Hand Tools have been the standard for high quality dimensional measuring tools since 1880. It manufactures more than 5,000 variations of Precision Tools, Gages, Measuring Instruments and Saw Blades for industrial, professional and consumer markets worldwide.From the ManufacturerA tool that every toolmaker, mechanic, and craftsman will need in his work at one time or another.
